Protective inserts
HBP 9, SK 2 , RPS klass C

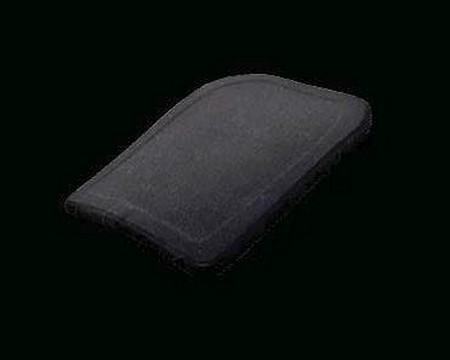

This light protective insert is designed for protection against pistol ammunition which vests can not stop. These panels provide protection against all types of handgun bullets including the bullets with steel core. It provides protection by SK 1 and RPS class C. Plates are used in combination with vests class IIA, II, IIA, SK 1, HG 1 and HG 2nd The inserts are made from UHMWPE. Anatomically designed and is suitable to protect the chest and back of the body. Specified protection was tested on higher temperatures up to +70 C. Plates are coated with a black polyamidematerial.
They are made in sizes:
18x24 cm ...... 410 grams
24x29 cm ...... 650 grams
|
Bullet |
Type |
Weight (gr) |
Velocity (m/s) |
|
9 x 19 mm |
FMJ |
8.0 |
367 |
|
9x19 mm Dynamite Nobel DM 11A1B2 |
FMJ |
8.0 | 360 |
| 9x19mm | 39b VANAS | 8.0 | 400 |
| .357 Magnum | DAG | 7.1 | 550 |
HBP 18, level III
HBP 18, level III+
HBP 18, level III+, Groin protection

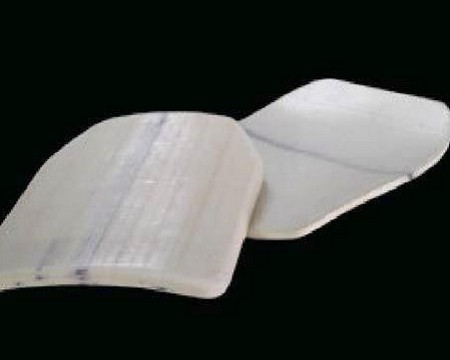

Polyethylene insert, is intended to protect against rifle Soft Core or Mild Steel Core bullets. The insert provides protection in combination with a level IIIA vest according NIJ. It is anatomically shaped and is suitable to protect the chest and body. It is in the dimensions 24x29 cm, 25x30 cm, 10''x 12''. Top corners boards are trimmed, to ensure the mobility of hands. The is dressed in polyamide fabrics in black, or is placed in made of ABS. Weight of the insert, measuring 25x30 cm is: 1350 gr.
|
LEVEL NIJ 0101.04 |
Bullet |
Type |
Weight (gr) |
Velocity (m/s) |
|
III |
7,62 x 39 mm NATTO ball |
FMJ |
9.6 |
850 |
| III+ | 7,62 x 39 mm NATTO ball | FMJ | 9.6 | 850 |
| III+ | 7,62 x 39 mm AK47 | FMJ | 8.0 | 720 |
HBP 10, AK 47 STOPER
This insert is intended to stop the bullets which are most common in many battlefield arenas. Protection from the most common rifle bullet fired from AK 47 or 7, 62 x 39 mm LPS. It is used in conjunction with protective vests level IIIA, according to NIJ standard. It is made in any size, as required by customers. Dimensions are of 25x30 cm weight is 750 grams.
|
Bullet |
Type |
Weight (gr) |
Velocity (m/s) |
|
7,62 x 39 mm |
FMJ |
8.0 |
710 |
HBP 23, Cymor I
HBP 24, Cymor II
HBP 24, Cymor ++ STAND ALONE
Integrating frequent customer requests, and in order to respond in a most professional way, we made this insert which provides protection from the 3 most common rifle bullets in the battlefield arenas.The insert is lightweight, anatomically shaped very onvenient to use. Available in sizes 25x30 cm. We are identifying as CYMOR.
It is produced in several alternative solutions:
CYMOR I, weight 1700 gr.
CYMOR II, weight 1800 gr.
CYMOR STAND ALONE, weight 1750 gr.
|
Bullet |
Type |
Weight (gr) |
Velocity (m/s) |
|
7,62 x 39 mm |
MSC |
8.0 |
710 |
| 7,62 x 51 mm | FMJ | 9.6 | 850 |
| 5.56 x 45 mm | Ss109 | 4.0 | 920 |
HBP 33, level IV

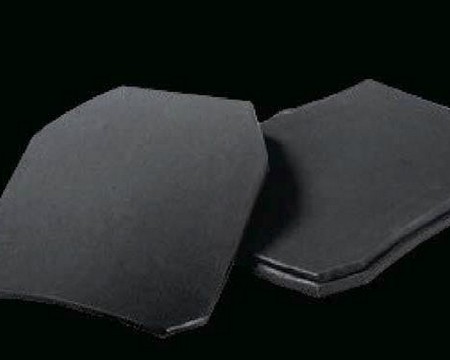

Despite its light weight, this insert provides protection against all bullets fired from small arms, including armor-piercing bullets (AP). Provides protection level IV, according to NIJ 0101.04. This insert is a collection of the best constructive and technological solutions, which are the high level of reliability and low weight? The insert is anatomically shaped, and is made in the dimension 25x30 cm. Weight plate is 2.5 kg.
|
Bullet |
Type |
Weight (gr) |
Velocity (m/s) |
|
7,62 x 39 mm |
AP |
8.0 |
710 |
| 7,62 x 51 mm | AP | 9.7 | 850 |
| 7,62 x 54 R | B32 | 10.4 | 850 |
| 30-06 | AP-M2 | 10.8 | 860 |
HBP 40, AK47 AP
Designed on customer request, this insert provides a protection level III, according to NIJ 0101.04 and the bullets fired from AK47, 7.62 x 39 AP.
|
Bullet |
Type |
Weight (gr) |
Velocity (m/s) |
|
7,62 x 39 mm |
AP |
9.7 |
850 |
| 7,62 x 51 mm | FMJ | 8.0 | 710 |
HBP 41, level IV
This ballistic plate is used for protection against all types of rifle and gun projectiles. Additioanly provide protection against both soft core and armor piercing bullets. The plate was made according to level IV NIJ0101.04. standard. Used along with BulletProof vest with Level IIIA protection.
• Tested to NIJ 0101.4
• Available size is 25x30 cm
• Low-weight plate of 3100 gr.
• Anatomic design of the plate enables protection of both chests and back of the user, 3D.
• High-density ceramic core backed with a composite of layered Aramid fiber
• Finished in ployamid ani-spall cover. • Suitable for use in all weather condition.
• All relevant information could be found on the back side of the plate.
• Ten years warranty

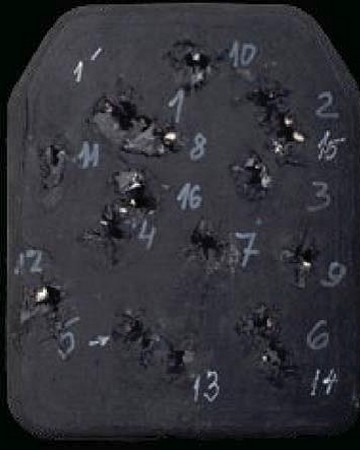

HBP 41, level IV, Multi-hit
Multi-hit, 8 shots AP bullet
Available size is 25 x 30 cm
Low-weight plate of 3250 gr.
HBP 41, level IV,
Groin preotection
Available size is 25,5 x 25,5 cm
Low-weight plate of 2250 gr.
|
Bullet |
Type |
Weight (gr) |
Velocity (m/s) |
|
7,62 x 39 AK47 |
FMJ |
8.0 |
720 |
| 7,62 x 39 mm AK47 | MSC | 8.0 | 710 |
| 7,62 x 39 AK47 | AP | 8.0 | 710 |
| 5.56x45 mm | SS 109 | 4.0 | 920 |
| 7.62x51 NATO ball | FMJ | 9.6 | 850 |
| 30-06 | AP | 10.8 | 860 |
HBP 44, level IV
Available size is 25 x 30 cm Low-weight plate of 3450 gr.
